Solution Case

Internet of things - a solution for intelligent control of machine room environment




With more than 10 years of development,Ticom Tech has accumulated rich experience in rail transportation, electronic information, networking, mobile communications and other fields. Due to the disadvantages of high energy consumption, high maintenance cost and easy damage of air conditioning compressor in the existing machine room, and on the basis of its years of experience in machine room design and construction, Ticom integrates the advanced design concept, environmental awareness, consciousness of energy saving and consumption reduction, awareness of safety and protection, and the modular concept into the design of machine room. It meet the needs of reform of the current machine room and the modular design and construction in the future machine room with leading efficiency and extensive compatibility, so as to adapt to many application scenarios, achieve rapid deployment and compatibility, and create a new intelligent control solution with integration of information, intelligence and energy saving.

Due to the disadvantages of high energy consumption, high maintenance cost, easy blockage of air conditioning dustproof net, and easy damage of air conditioning compressor, Ticom Tech integrates the advanced design concept of environmental protection, energy saving, safety and so on into the environment control of the machine room, develops a series of products, such as energy- saving air conditioner, so as to adapt to many application scenarios, achieve rapid deployment and compatibility, and provide users with intelligent control solution with integration of information, intelligence and energy saving.

Environmental control solution for small Repeater machine room

Environmental control solution for the intelligent air in the existing machine room

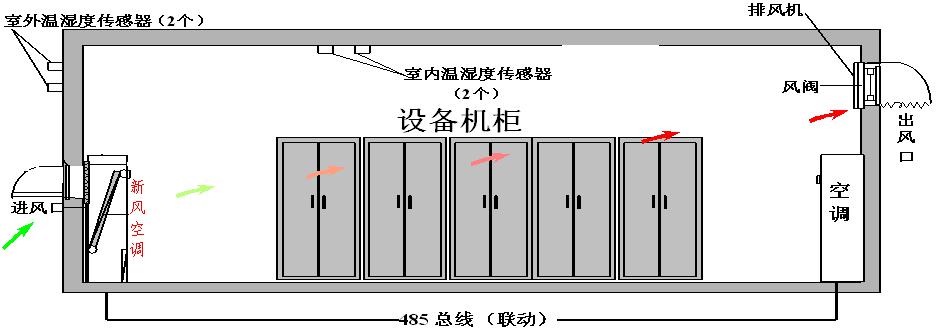

1, Environmental control solution for small Repeater machine room

Small repeater machine room is smart machine room specifically designed for railway communication field, repeater stations and other equipment. Ticom has introduced a variety of special intelligent machine room for repeater according to demand characteristics of the repeater machine room in the railway.

Whether the temperature in the room of the repeater can be controlled under the standard condition directly affects the normal work and working life of the equipment in the machine room. Based on its own experience in repeater room construction, Ticom has put forward the  design and reconstruction plan of adjusting the temperature with the fresh air system in the repeater machine room, so that the temperature in the room of the repeater can be controlled under the standard condition.

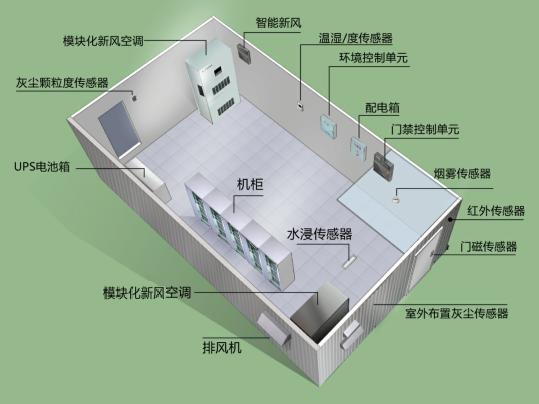

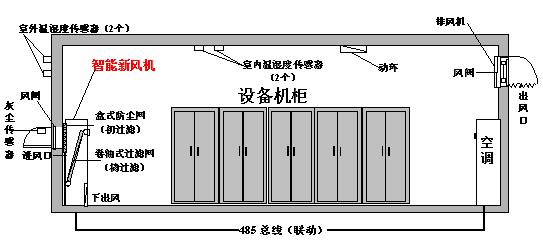

2. Environmental control solution for the intelligent air in the existing machine room

Ticom provides a set of environmental control solution for the intelligent air in the existing machine room, which integrates air control, intelligent switch net, centralized control, linkage management and remote WEB control, so as to transform the existing machine room.The solution is designed for the the repeater machine room in the railway and communication industry, so as to make use of outdoor natural cold resources to save energy.


Characteristic:

1) efficient natural cold source design is applied to all kinds of professional machine rooms. When the indoor temperature reaches a certain degree, it can turn off the air conditioner in the machine room, and directly filter outdoor air into the machine room to refrigerate., thus saving more than 40% energy consumption compared with the conventional air conditioner.

2) The dynamic network design provides 6 times dustproof net which can have dynamic automatic replacement with filter net, thus increasing the maintenance period at 6~8 times.

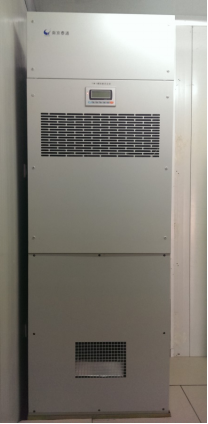

3) The air conditioning environment control solution for new communication machine room

In terms of the problems of non redundant backup, high energy consumption and high maintenance cost in the current machine room environment, Ticom put forward an intelligent environment control solution based on communication base station, which integrates energy saving air conditioner and intelligent fresh air used by communication bureau (station).


Advantage:

1) unique structural design: with the concept of modular division design , the air conditioning part and fresh air part are design separately and the installation is assembled.

2) Some parts of modular precision air conditioner adopts the unique inlet and outlet design, so that the working efficiency is high.

3) the energy saving effect is about 20%~30% higher than that of the ordinary new air conditioner. It is small in volume and convenient for maintenance and disassembly.

4) mutual redundant backup design. Modular intelligent fresh air and module precision air conditioner adopts independent control board with mutual redundancy and linkage control.

5) module fresh air has emergency function. When the air conditioner is out of service in the machine room, the module fresh air starts to change the air according to the temperature set by itself and provides the natural cooling source for the machine room, thus ensuring the indoor and outdoor has a temperature difference at less than 3.

 It provides an emergency buffer for the temperature control in the machine room.

6) have the function of independent intelligent fresh air, meet the characteristics of heat exchange, and have linkage control function among many equipment.
